Connect QQ via QQ Official Bot (Webhook) ​

WARNING

  1. QQ Official Bot currently requires an IP whitelist.
  2. It supports group chat, private chat, channel chat, and channel private chat.
  3. You need a server with a public IP and a domain.

Supported Basic Message Types ​

Version v4.15.0.

Message TypeReceiveSendNotes
TextYesYes
ImageYesYes
VoiceNoNo
VideoNoNo
FileNoNo

Proactive message push: Not supported.

Apply for a Bot ​

Open QQ Official Bot and sign in.

Create a bot, fill in name/description/avatar, then submit for review. After security verification passes, creation is complete.

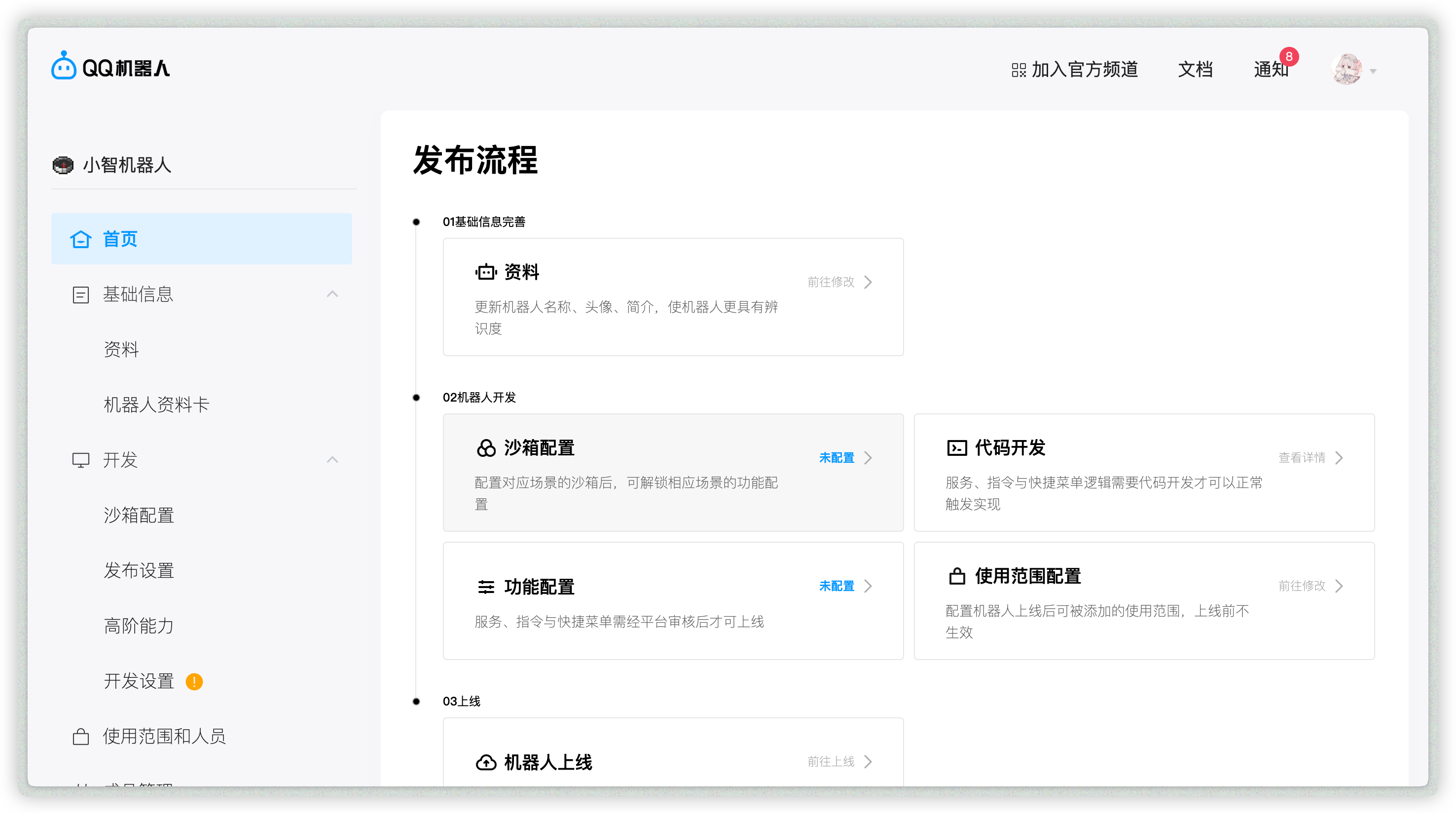

Open the created bot to enter its management page:


Allow Bot in Channel / Group / Private Chat ​

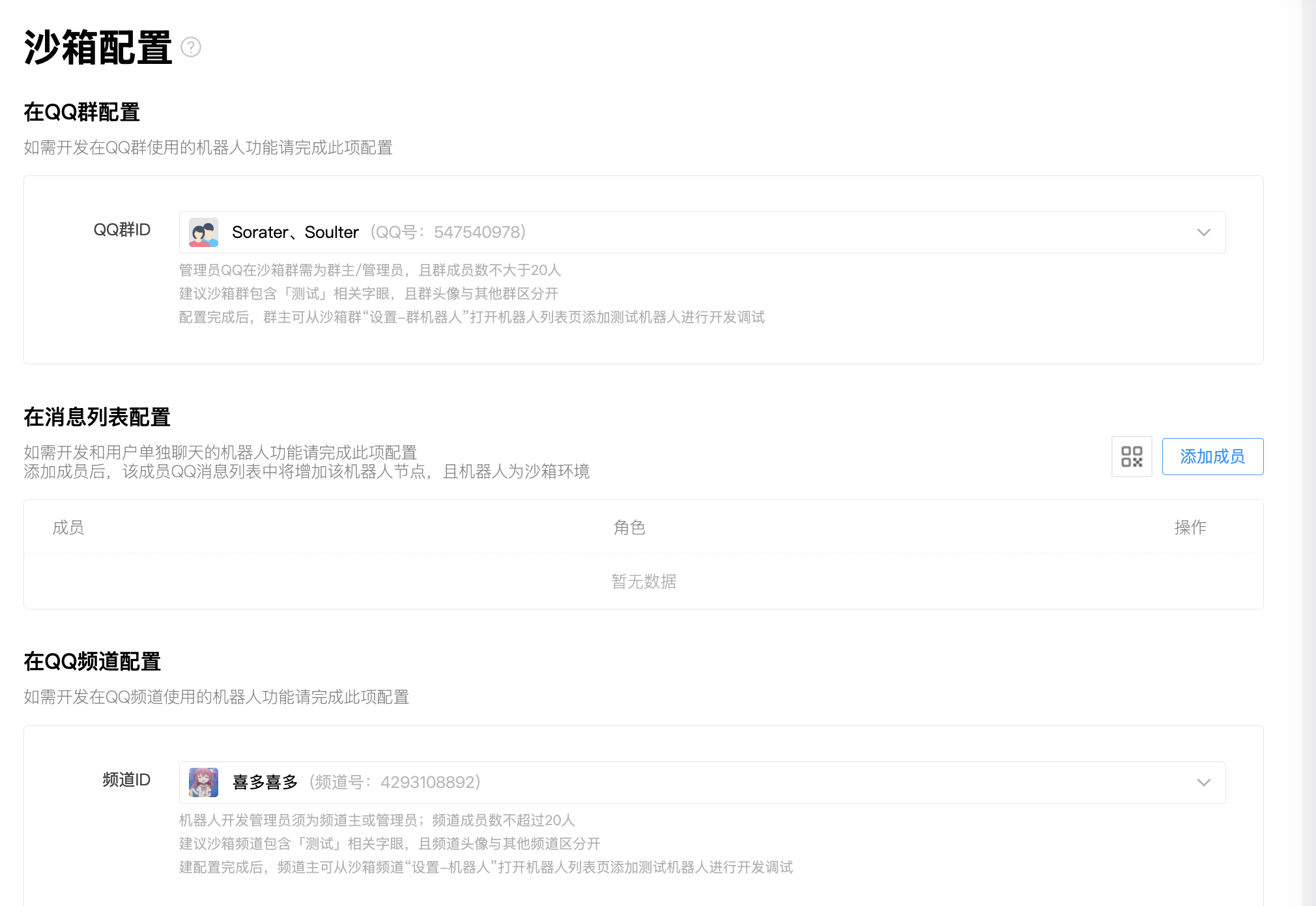

Open Sandbox Configuration to set a sandbox channel / QQ group / QQ private chat (up to 20 members).

Then configure QQ groups, private chat QQ accounts, and QQ channels as needed.


Get appid and secret ​

After adding the bot where you need it, open Development -> Development Settings, then copy appid and secret.

Add IP Whitelist ​

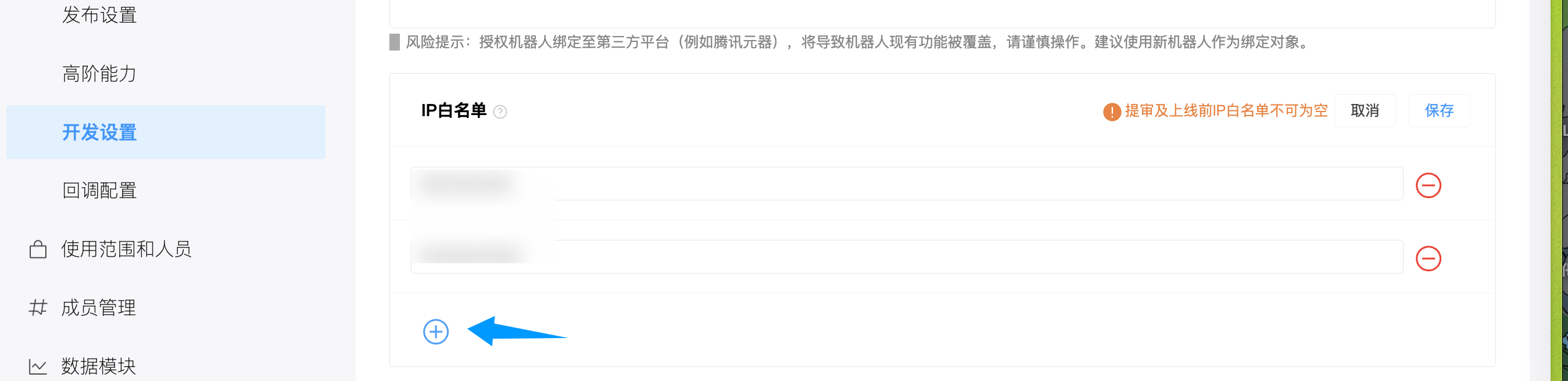

Open Development -> Development Settings, find IP whitelist, and add your server IP.


Configure in AstrBot ​

  1. Open AstrBot Dashboard.
  2. Click Bots in the left sidebar.
  3. Click + Create Bot.
  4. Select qq_official_webhook.

Fill in:

  • ID (id): any unique identifier.
  • Enable (enable): checked.
  • appid: from QQ Official Bot platform.
  • secret: from QQ Official Bot platform.

Click Save.

Configure Callback URL ​

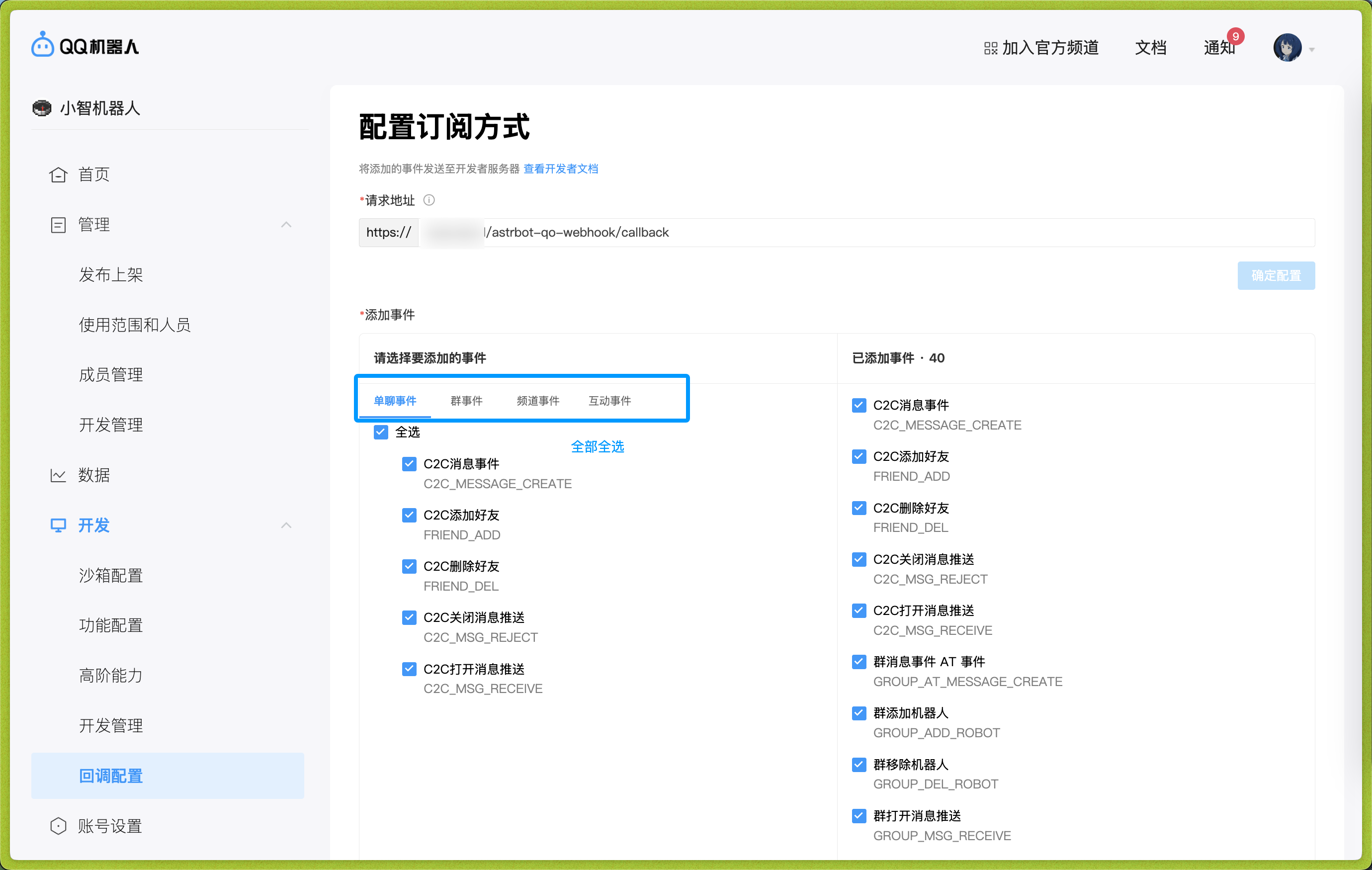

In Development -> Callback Configuration, configure callback URL.

Set request URL to <your-domain>/astrbot-qo-webhook/callback.

Your domain should reverse-proxy traffic to AstrBot port 6196 using Caddy, Nginx, or Apache.

Then add callback events and select all four event categories (private, group, channel, etc.).


After entering values, move focus out of the input box to trigger validation. If validation passes, the confirm button on the right becomes clickable.

Then restart AstrBot.

Done ​

AstrBot should now be connected. If messages do not respond immediately, wait 1-2 minutes, restart AstrBot, and test again.

Appendix: Reverse Proxy Setup ​

If you are new to reverse proxy, Caddy is recommended:

  1. Install Caddy: https://caddy2.dengxiaolong.com/docs/install
  2. Configure reverse proxy: https://caddy2.dengxiaolong.com/docs/quick-starts/reverse-proxy

Caddy can automatically apply TLS certificates for Webhook access.
